Description

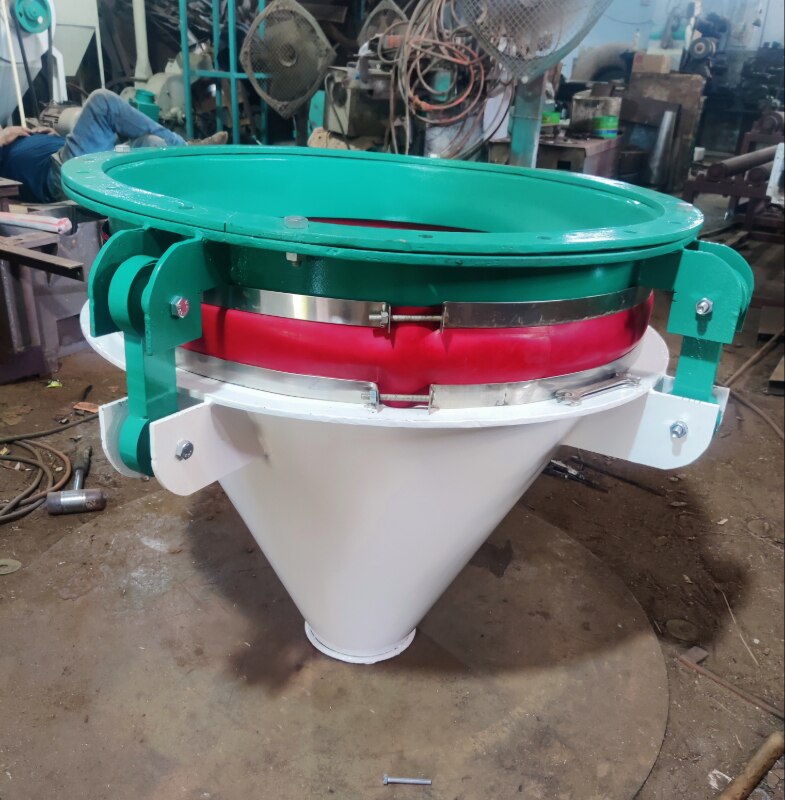

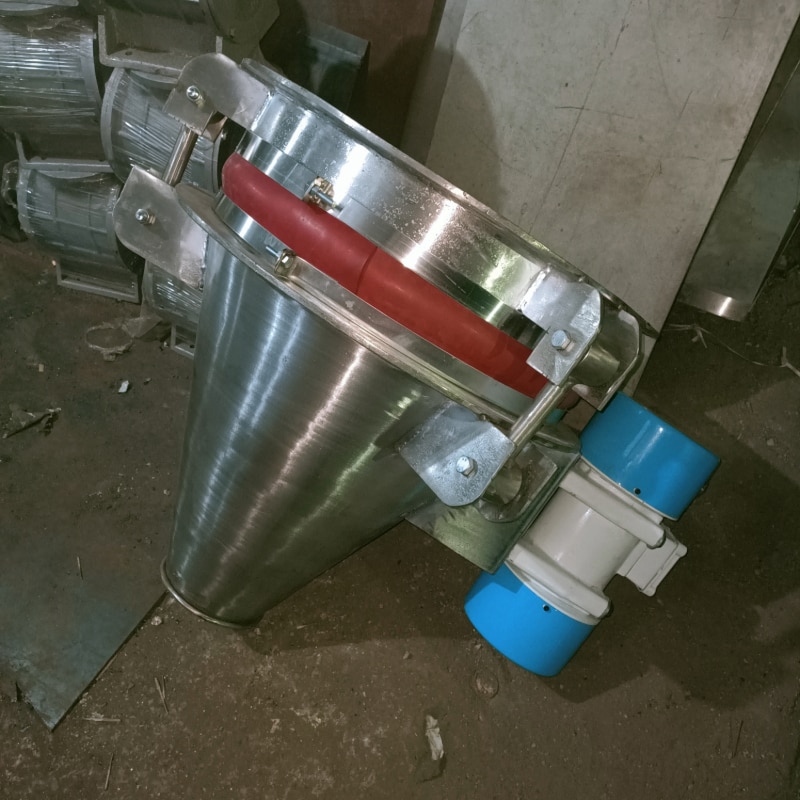

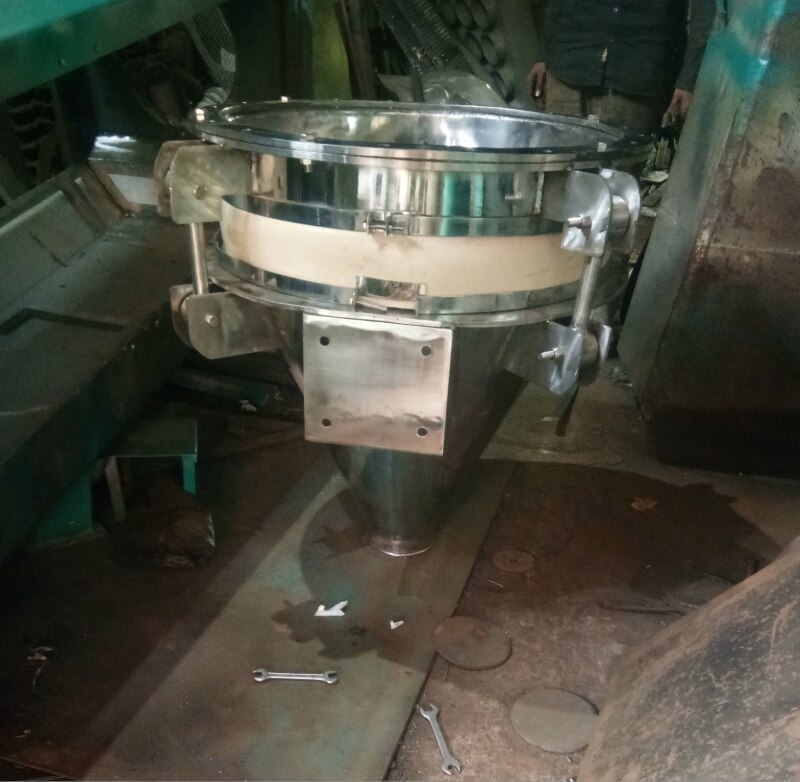

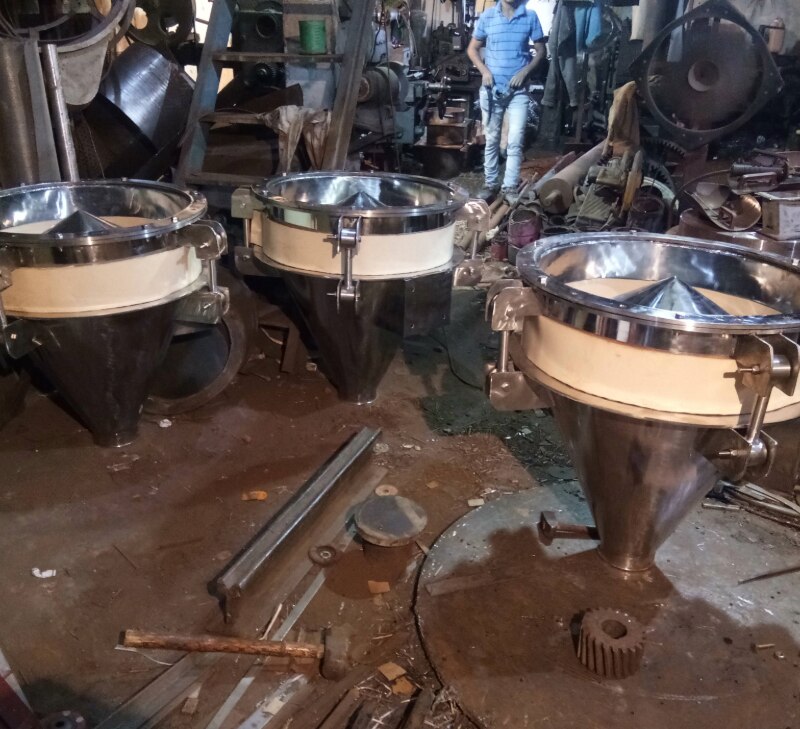

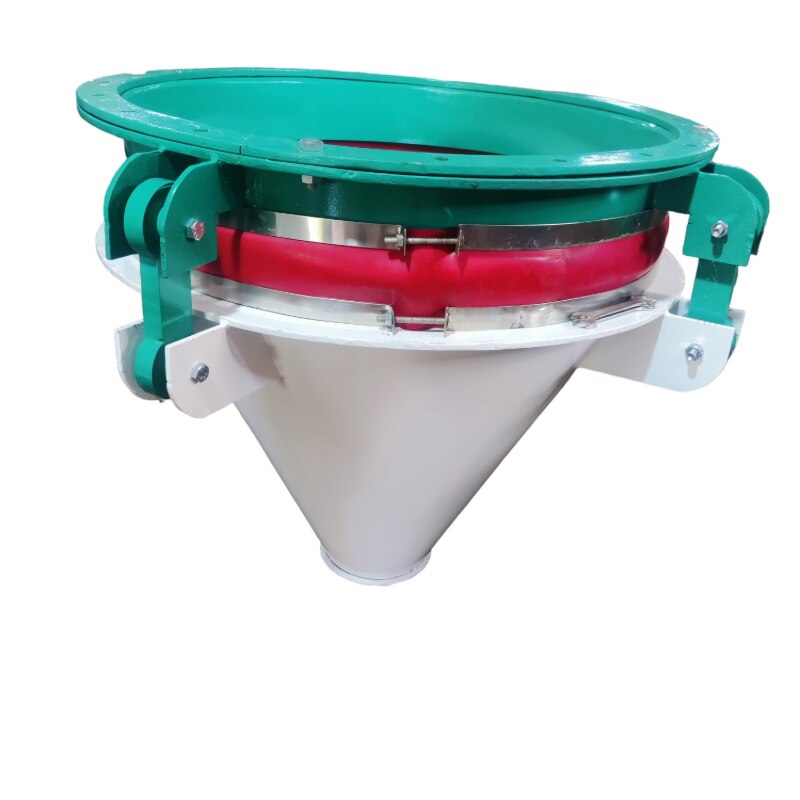

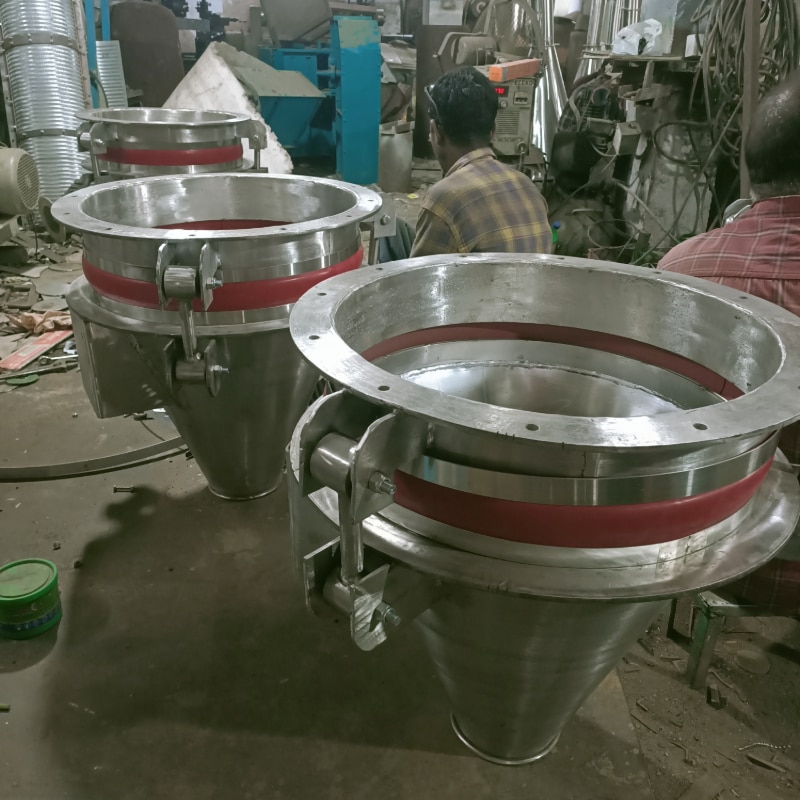

Bin Discharger Bin Discharger design consists of an internal cone-shaped baffle which is attached to the body rigidly by means of structural member. The unit is suspended by means of hanger bolts from the top of hopper or silo to which it is attached. Bin Discharger- It is fixed below the Bin to discharge the material from it. Individually engineered for each application, the unique design of Bin Discharger allows easy installation with the ruggedness to stay on-line. The Bin Discharger’s simple, compact design incorporates all of the important features customers have come to expect a leak proof molded sleeve, heavy duty suspension system and long life vibrator. Bin Discharger moves horizontally in response to centrifugal forces generated by the unbalanced weights of an attached vibrator. The cone baffle relieves the weight of the material from the lower section of the bin discharger and acts like a wedge as it moves beneath the material and pushes it in all directions adjacent to the cone surfaces. This powerful force is also transmitted to the material in the upper portion of the bin as the motion is carried from particle to particle. Bin discharger is used to discharge powder, flakes, grains, pellets and granular materials from storage bins. The Wrights Dowson Group bin dischargers are a proven and effective method in achieving this. They are used in conjunction with hoppers and silos. FEATURES: • A wide range of sizes from 600mm to 2500mm • Endless, durable flexible sleeve, FDA Approved, single piece construction • Hanger bolts with silent blocks to absorb vibration and prevent vibration from being transmitted to top hopper • High-quality vibratory motors • Available in Carbon Steel and Stainless Steel material • Very easy to install at the site • Bottom hopper with demountable feature available upon request APPLICATION: Bin Dischargers are used for breaking the bridges and rat holes in bulk solids stored in silos while taking them out from the bottom of silos and big hoppers.
